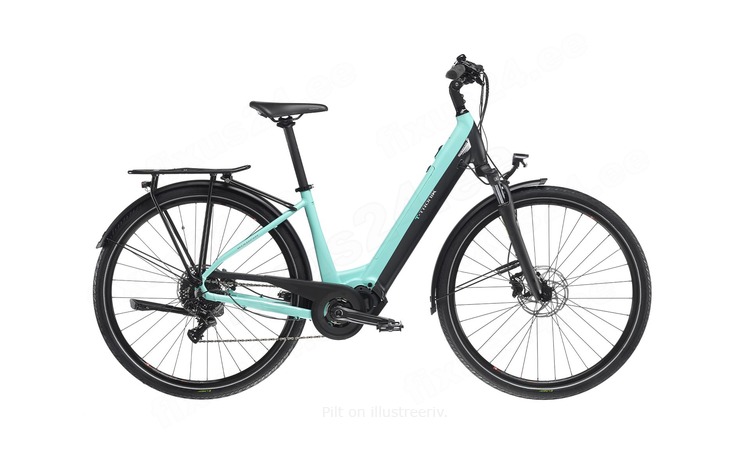

Elektriratas Bianchi T-Tronik C 47cm

Motor Unit
Motor
Shimano E6100 250W, torque 60Nm
Battery
417Wh Phylion integrated battery
Frameset
Frame
T-Tronik C-Type Frame 28" Urban, Suspended fork geometry, Alu PG 6061 32/37 Max shell, disc brake, O.L.D.135mm, D/T battery, size: 43/47
Fork
Suntour SF15-NEX-E25-DS-700C-63 PostMount disc brake, 1.1/8"", travel 63mm, compatible with fender, OLD 100mm, Quick relase type
Headset
FSA 1.1/8" 44H-N10P
Drivetrain
Shifters
Sunrace DLE903N, 9sp, w/ optical gear
Rear Derailleur
Sunrace, 9sp, max 42T
Crankset
FSA SMN E-Bike Forged Crankset, 170mm CHAINRING, SM-CRE61, 38T, FOR CHAIN LINE 46.5MM
Bottom Bracket
included in the motor
Chain
KMC E9s EPT
Brakes
Brakes
Radius, BH-M960, 900mm hose length, Direct Mount, w/adapter Radius BH-M960, 1700mm hose length, Direct Mount, w/ J-kit, w/ adapter
Rotor
Radius Rotors RT900, 160mm, center lock
Wheels
Wheels
Velomann 29", 23-622, 32 hole black
Tire
Chaoyang E-Liner City 700x45C, 60tpi
Cockpit
Stem
Velomann, 28,6 mm steerer ID Clamp, 31,8 mm barbore
Handlebar
Velomann 31.8/680mm, RISE 20MM, SWEEP 15°
Grips
Herrmans GRIPset Oxy DD29BR/BL 130mm/130mm black-black,d.22mm
Saddle
Seatpost
Velomann, lenght 350mm, diam. 31,6mm, 0mm seatback, Al2014 shaft + alloy head
Saddle
Selle Royal, Essenza
Accessories
Pedals
VP black aluminum, w/reflector
Mudguards
SKS Mudguard profile A60S, internal cable routing on the rear mudguard, secuclip/esc clip, protector on front and rear tail, protector on front mudguard
Kickstand
